| Function | Mini DVR |
| Video Input Channel (BNC) | 4 channel BNC interface (1.0 Vp-p, 75 Ω) |
| Video Formats | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| HDMI Video Output | 1 channel, 1024 x 768/60Hz, 1280 x 720/60Hz, 1280 x 1024/60Hz, 1920 x 1080/60Hz |
| VGA Video Output | 1 channel, 1024 x 768/60Hz, 1280 x 720/60Hz, 1280 x 1024/60Hz, 1920 x 1080/60Hz |
| Video Record Resolution | 1080p Lite/720p/CIF/4CIF/WD1/VGA (depends on stream access) |
| Video Bitrate Range | 32 Kbps to 4 Mbps |
| IP Video Input | 1 channel (supports up to 5 channels) |
| IP Camera Input Support | Up to 1920 x 1080, H.265/H.265+/H.264/H.264+ supported |
| Analog and HD-TVI Video | 4 channel, BNC interface (1.0 Vp-p), supports coalition connection |
| Audio Compression | G.711u |
| Audio Input Channel | 1 channel RCA |
| Audio Bit Rate | 64 Kbps |
| Audio Output Channel | 1 channel |
| Two-way Audio | Yes. Reuse the first audio input |
| Frame Rate | Mainstream: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub Stream: 4CIF@15fps CIF/QVGA@25 fps (P)/30 fps (N) |
| Stream Type | Video, Video+Audio |
| Dual-Stream Support | Yes |
| Synchronous Playback | 4 channels |
| Network Protocol | PPPoE, TCP/IP, DDNS, DNS, SADP, DHCP, SMTP, Hik-Connect, UPnP, NFS, iSCSI, HTTPS, NTP |
| HDD Interfaces | 1x SATA |
| HDD Support | 4TB (Max.) |
| Network Interface | 1, RJ45 10/100 Mbps Ethernet interface with self-adaptive feature |
| USB Ports | 2 x USB 2.0 |
| CVBS Input | Supported |
| Video Motion Detection | Motion Detection 2.0 (Human and Vehicle Target Classification) |
| Power Input | 12 VDC, 1.5 A |
| Power Consumption | < 16W (Approx.) |
| Dimensions | 200x200x45 mm |
| Weight | 0.8 kg |
| Others | HDCVI Input: 1080p25, 1080p30, 720p25, 720p30.
AHD Input: 1080p25, 1080p30, 720p25, 720p30. Total Bandwidth: 64Mbps |
| Warranty | 1 year |

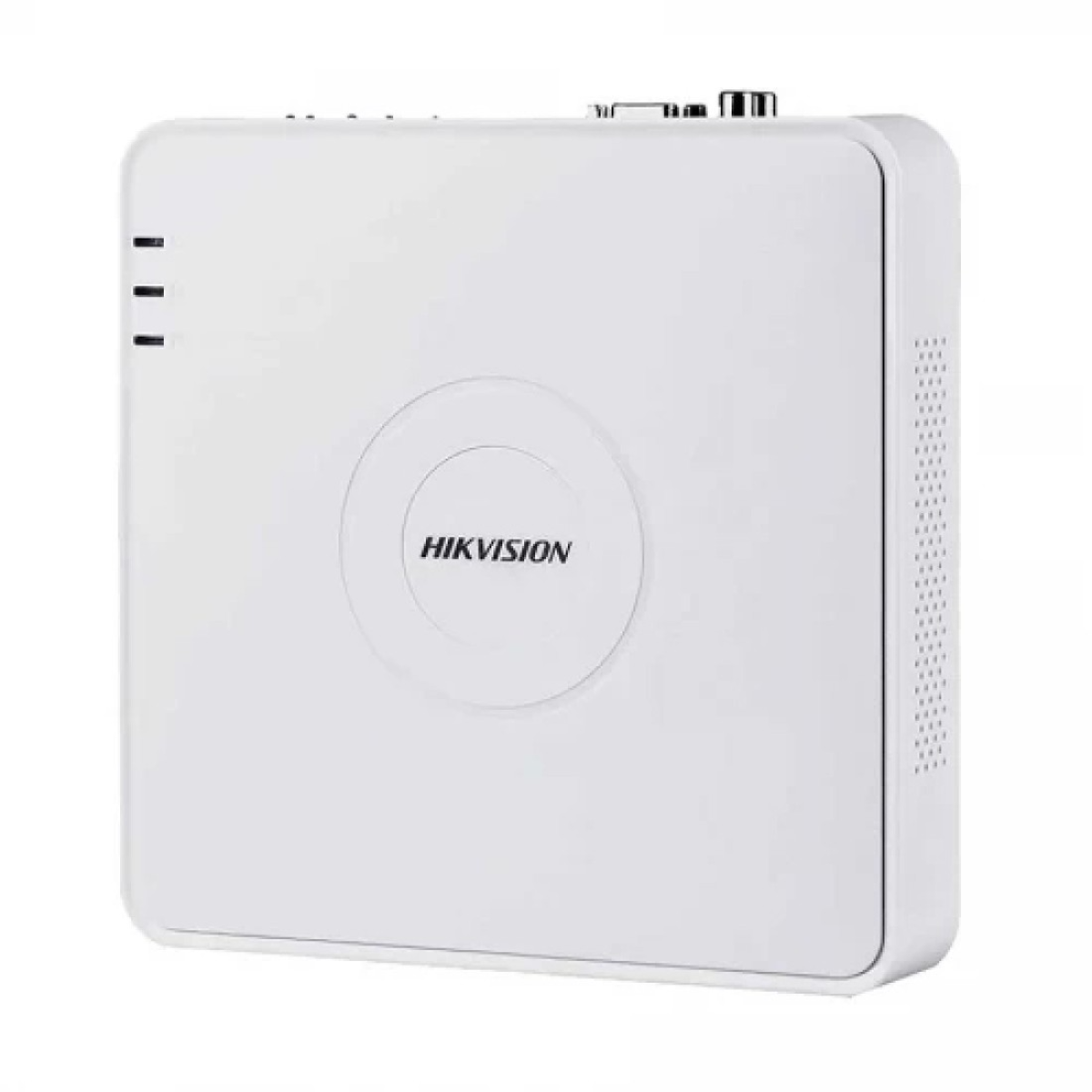

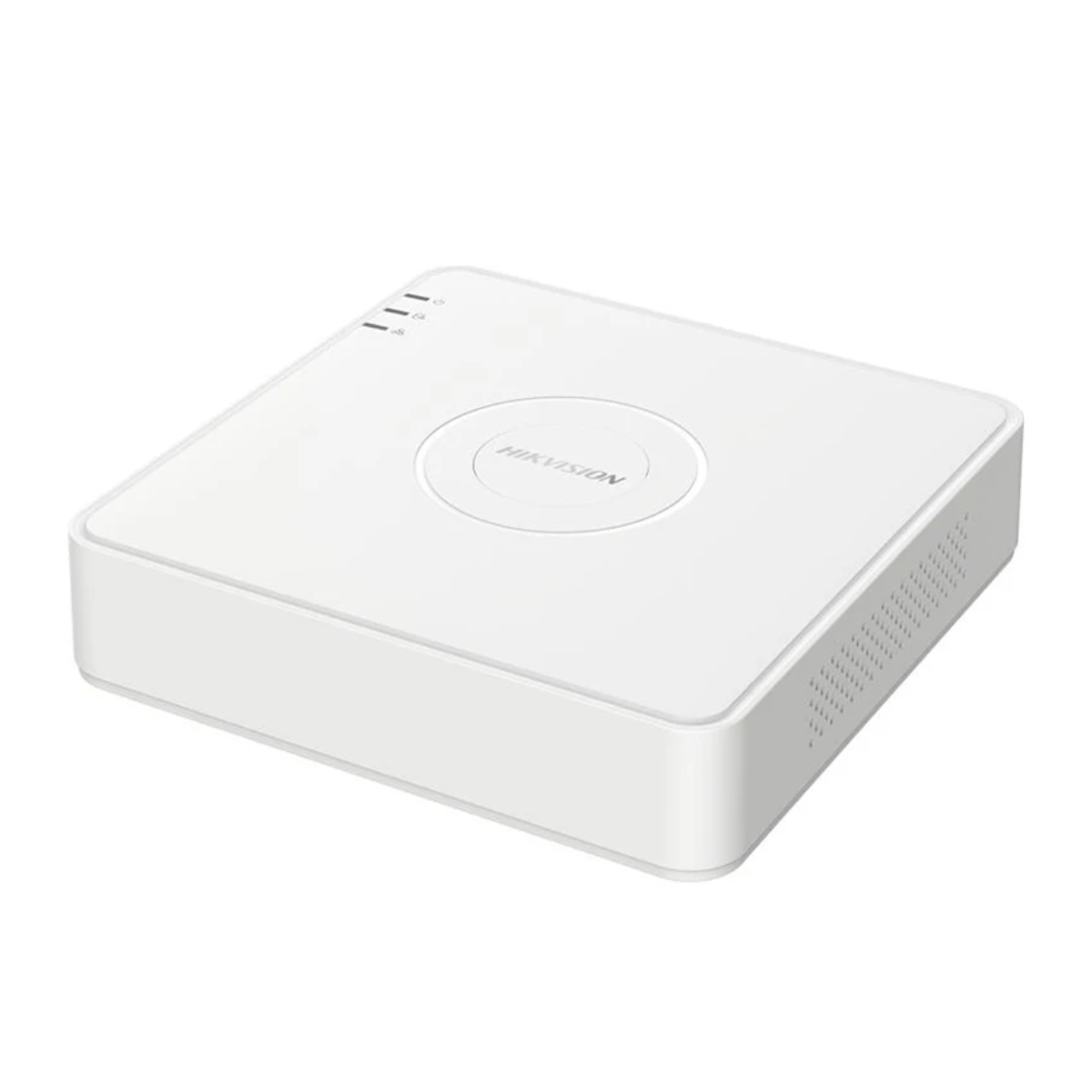

Features of Hikvision DS-7104HGHI-K1 4 Channel 1080p Lite Mini DVR
- Audio transmitted through coaxial cable
- 1080p video resolution from up to five-channel IP camera inputs
- 720p HD TVI signal transmission send up to 1200m distanceÂ
- 1080p Lite support for all channels. Images look similar to 1080p with the 1080p Lite turned on
- SATA interface supports up to 4TB hard drive
- Quick playback with smart search
- Convenient network management with DDNS and Hik-Connect
- Total bandwidth of 64/72 Mbps
Hikvision DS-7104HGHI-K1 4 Channel 1080p Lite Mini DVR Price in BD
At Islamia Computer Technology, we offer the best price for genuine products. The Hikvision DS-7104HGHI-K1 Mini DVR proves it with the 2,499 BDT price tag.
We provide quick home delivery and 1-year warranty for your peace of mind, so order now!Â
